Data Integration

This document summarises the options available to integrate with Future Anthem, for both data ingress and egress.

Contents

Overview

Standard Integrations

Real-Time Data Integrations
Sending Events via REST API
Sending Events via AMQP 1.0
Sending Events via SDK
Batch Data Integration

Bespoke Integrations

Real-Time Data
Batch Data




Overview

This document summarises the options available to integrate with Future Anthem, for both data ingress and egress. Future Anthem offers Standard and Client Bespoke integration options for either Real-time or Batch Data.

This document also outlines the options available to provide large datasets to Future Anthem on a one-off or irregular basis.

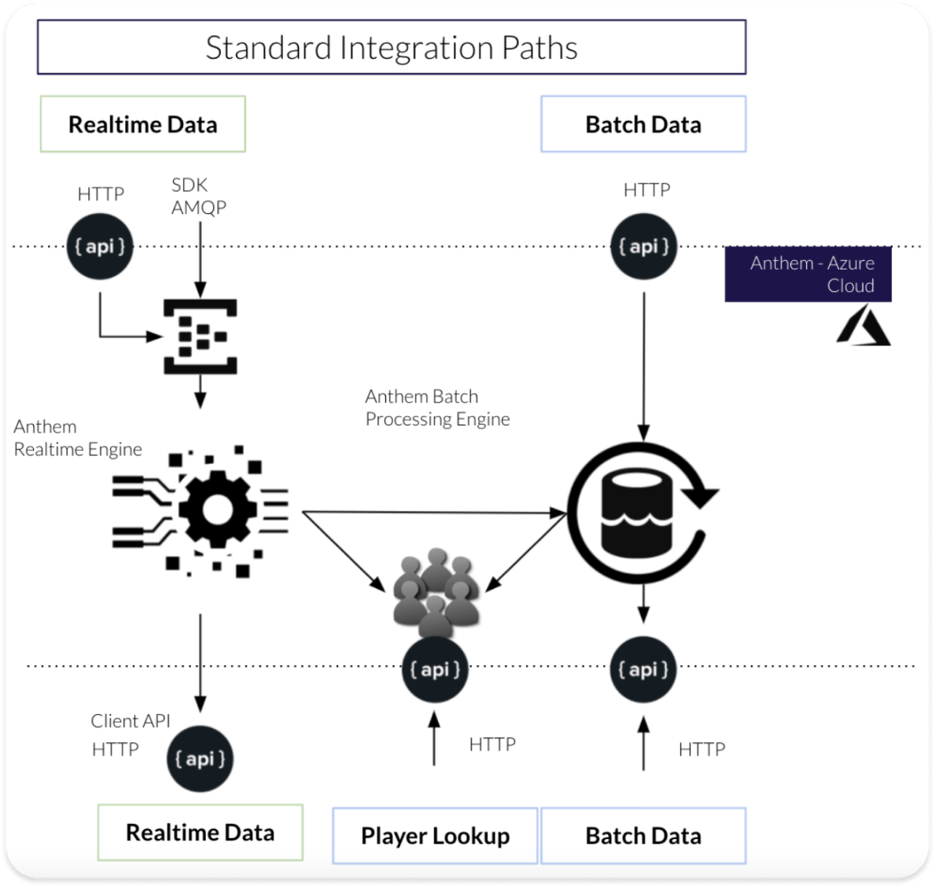

Standard Integrations

The standard Integration of Future Anthem products with client systems is via API’s:



Rectangle 254 (1)

Real-time Data Integration

Future Anthem’s Standard Real-time Data Integration uses Azure Event Hubs, which provide clients with a widely supported standard technology to integrate with Anthem’s Real-time Engine.



Sending Events to Anthem

Azure Event Hubs supports sending event data via:

  • REST API
  • AMQP 1.0
  • SDK for many different programming languages

Sending Events via REST API

Request

Method Request URI
POS https://{clientEndpointId}- fane01.servicebus.windows.net/{eventTypeName}/messages?tim eout=60&api-version=2014-01



Parameter Example Description
clientEndpointId casinomagic Future Anthem provides the clientEndpointId for the integration.
eventTypeName spins The client can set the eventTypeName to match the client’s terminology



Request Headers

Content-type

application/vnd.microsoft.servicebus.json

Authorisation

Future Anthem provided SharedAccessSignature token

x-ms-retrypolicy

NoRetry



Request body

JSON formatted event data. Either a single event or a list of batched events. All JSON payloads have to be String escaped and passed as the value to the “Body” key



JSON Schema

{
"$schema": "http://json-schema.org/draft-07/schema",
"$id": "http://example.com/example.json",
"type": "array",
"title": "Real-time Event Upload",
"description": "Schema definition for real-time events uploaded to Future Anthem",
"default": [],
"examples": [
[
{
"Body":
"{\"GameId\":\"1\",\"PlayerId\":\"123\",\"SpinId\": 1,\"Amount\": 0.25}"
}
]
],
"additionalItems": true,
"items": {
"$id": "#/items",
"anyOf": [
{
"$id": "#/items/anyOf/0",
"type": "object",
"title": "Event Schema",
"description": "The schema of a single event",
"default": {},
"examples": [
{
"Body":
"{\"GameId\":\"1\",\"PlayerId\":\"123\",\"SpinId\": 1,\"Amount\": 0.25}"
}
],
"required": [
"Body"
],
"properties": {
"Body": {
"$id": "#/items/anyOf/0/properties/Body",
"type": "string",
"title": "Event Body Schema",
"description": "The event Payload",
"default": "",
"examples": [
"{\"GameId\":\"1\",\"PlayerId\":\"123\",\"SpinId\": 1,\"Amount\": 0.25}"
]
}
},
"additionalProperties": true
}
]
}
}



JSON (single event) JSON (batch events)
[{“Body”:”{\"Key1\":\"Value1\ "}”}] \ "}”}] [{“Body”:”{\"Key1\":\"Value1\"}”}, {“Body”:”{\"Key1\":\"Value2\"}”}]



• Future Anthem will translate the client's data schema to the internal data schema used by Anthem’s Real-time Engine

• The event data provided can follow any schema and can be nested

• Clients should provide their schema documentation, allowing Anthem to configure their internal schema transformations



Response

The response includes:

  • An HTTP status code
  • A set of response headers
  • A response body
  • If the request is successful, the response body is empty
  • If the request isn't successful, the body contains an error code and error message



Response Code Description
201 Created
401 Authorisation failure
500 Internal error



Example

POST /spins/messages?timeout=60&api-version=2014-01 HTTP/1.1
Host: https://casinomagic-fane01.servicebus.windows.net
Authorization: SharedAccessSignature sr=casinomagic-
fane01.servicebus.windows.net&sig=casinomagic
token&se=1657122931&skn=upload
Content-Type: application/vnd.microsoft.servicebus.json
[{"Body": "{\"GameId\":\"1\",\"PlayerId\":\"123\",\"SpinId\":
1,\"Amount\": 0.25}"}]
curl --location --request POST 'https://casinomagic-
fane01.servicebus.windows.net/spins/messages?timeout=60&api-version=2014- 01' \
--header 'Content-Type: application/vnd.microsoft.servicebus.json' \
--header 'Authorization: SharedAccessSignature
sr=https%3A%2F%2Fcasinomagic-
fane01.servicebus.windows.net%2Fspins&sig=casinomagic-
token&se=1657122931&skn=upload' \
--data-raw '[{"Body": "{\"GameId\":\"1\",\"PlayerId\":\"123\",\"SpinId\":
1,\"Amount\": 0.25}"}]'



Sending Events via AMQP 1.0

AMQP integration is documented as part of Azure’s Service Bus: https://docs.microsoft.com/enus/azure/service-bus-messaging/service-bus-amqp-overview

Sending Events via SDK

The Azure SDK exists for all major programming languages:



Receiving events from Anthem

  • To receive real-time events, an API should be provided for Anthem to call
  • Anthem integrates with the Client API’s based on their provided specifications and requirements



Anthem supports:

  • POST method to APIs
  • Static IPs for IP whitelisting
  • SSL with self-signed client certificates



Example - Real-time intervention

{"campaignId":"1","bonusTemplateId":1, "casinoId":123,
"skinId":0,"playerId":1234,"sessionKey":"df0axxx9f7424897","expirationTim e":1659368825401,
"betAmount":0.25}



Key

  • Campaign id: Configured in bonus/free spins system
  • Bonus Template Id: Defines award level: e.g. template 1 = 5 free spins
  • Bet amount: the nominal value of a free spin in this example is based on a player's last cash stake amount
  • Expiration time: A business rule where we take the datetime of the spin + x (in this case x = 3 seconds)

If clients do not have an API available we offer bespoke integrations, such as hosting a webhook - for examples see the section on bespoke integration options.



Batch Data Integration

Irregular

For provisions of large datasets (e.g. an initial set of historic data), Anthem’s standard pattern is to enable client’s to upload via Azure Storage Explorer {GUI}.

Other options are:

  • AzCopy
  • Pulling data from client environment (e.g. from S3 bucket)
  • SFTP can be made available on request



Regular

Regular data provision is handled via API.



Upload

Request

Method  Request URI
POST https://{clientEndpointId}- fane01.azurewebsites.net/api/upload/{date}/{filename}?code ={token}



Parameter Example Description
clientEndpointId casinomagic Future Anthem provides the clientEndpointId for the integration.
date 2021-01-01 The corresponding date for the uploaded data in YYYY-MM-DD format
filename spins_01.csv  The target filename of the upload. Reusing the filename allows data to be overwritten
token Abc123Z== Future Anthem provides the required API key for Authorization



Request Headers

Content-type multipart/form-data



Body

Binary multipart form data



Response

Response Code Description
200 Success
401 Authorisation failure
500 Internal Error



Example

POST /api/upload/2021-01-01/spins_01.csv?code=ABC123Z== HTTP/1.1
Host: https://casinomagic-fane01.azurewebsites.net
Content-Length: 198
Content-Type: multipart/form-data; boundary=----
WebKitFormBoundary7MA4YWxkTrZu0gW
----WebKitFormBoundary7MA4YWxkTrZu0gW
Content-Disposition: form-data; name=""; filename="spins_01.csv"
Content-Type: text/csv
(data)
----WebKitFormBoundary7MA4YWxkTrZu0gW
curl --location --request POST 'https://casinomagic-
fane01.azurewebsites.net/api/upload/2021-01-
01/spins01.csv?code=ABC123Z==' \
--form '=@"/path/to/file/spins-048046c6b0cf-c000.csv"'



Download

Request

Method Request URI
GET  https://{clientEndpointId}- fane01.azurewebsites.net/api/download/{date}/{templateId}? code={token}



Parameter Example Description
clientEndpointId  casinomagic  Future Anthem provides the clientEndpointId for the integration.
Product  personalise  Future Anthem product
Date  2021-01-01  The corresponding date for the uploaded data in YYYY-MM-DD format
templateId  The template ID specifies the clients configured output format
token Abc123Z== Future Anthem provides the required API key for Authorization



Body

Returned file based on the configured templateId which includes:

  • Client’s desired naming convention
  • Date and time formatting
  • File types such as csv, json
  • Client specific business logic



Lookup

Results are cached by Anthem – via either real-time or batch engines – and made available for client systems to lookup.



Request

Method Request URI
GET https://{clientEndpointId}- fane01.azurewebsites.net/api/lookup/{product}/{playerId}?code={to ken}
Parameter Example Description
clientEndpointId casinomagic  Future Anthem provides the clientEndpointId for the integration.
product  personalise  Future Anthem product
playerId player123  The player id to lookup
token  Abc123Z==  Future Anthem provides the required API key for Authorization



Example Body (game recommendations)

JSON Schema

{
"recommendations": [
"21947",
"22578",
"21922",
"22582",
"14788",
"14837",
"21931",
"22552",
"22562",
"17279",
"25659",
"25675",
"14723",
"25691",
"17536",
"14619",
"21030",
"21037",
"21116",
"21080",
"21104",
"22544"
],
"favourites": [
"21921"
],
"recentActivity": [
"21105"
],
"clientId": "casinomagic",
"environment": "production",
"version": "1.0.0",
"responseId": "ce1208cc-ad3c-4f93-9de3-3a953eed777e",
"playerId": "123",
"EventProcessedUtcTime": "2022-12-30T02:00:09.2232571Z",
"PartitionId": 0,
"EventEnqueuedUtcTime": "2022-12-30T02:00:09.0160000Z"
}

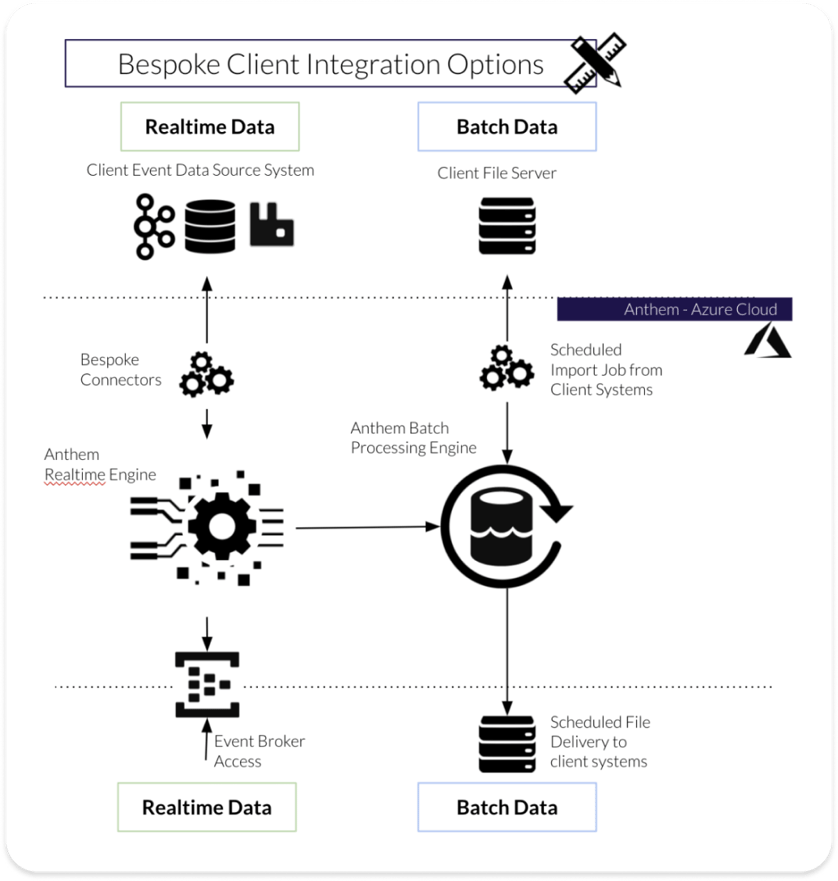

Bespoke Integrations

Where the standard integration options are not suitable, Anthem will deliver a bespoke integration based on client requirements. Future Anthem has built a range of successful client integrations which required bespoke solutions.



Rectangle 254 (2)



Real-time Data

Sending events to Anthem

Future Anthem can ingest real-time data directly from client systems via a bespoke connection.

Future Anthem has successfully integrated clients via a direct connection to:

  • Client Kafka brokers to consume real-time feeds from Kafka
  • Client RabbitMQ brokers
  • Various databases and DWH implementations to consume real-time feeds via change data capture. Examples include Postgres and Snowflake



Anthem’s bespoke connectors support:

  • Static IPs for IP whitelisting
  • SSL with self-signed certificates
  • Authentication via username and password or via certificates



Receive Events from Anthem

  • Clients can receive real time data from Future Anthem’s real-time engine without providing an API
  • Clients can connect to Future Anthem’s systems to poll data directly via a bespoke connection



Future Anthem supports:

  • Hosting a client webhook
  • Providing a message broker to connect to e.g. Kafka or AMQP
  • Static IPs for IP whitelisting
  • Authentication via username and password or certificates



Batch data

Providing files to Anthem

Future Anthem can ingest files with batch data directly from client file servers or blob storage, and can also host a file server or blob storage on a client’s behalf.

Future Anthem has successfully integrated clients via:

  • SFTP
  • Blob storage in Azure and AWS S3
  • Ingestion on time schedules
  • Ingestion triggered by notifications



Future Anthem can deliver files directly to client systems using a wide range of bespoke integration options.

Future Anthem supports:

  • SFTP
  • Blob Storage in all major cloud providers such as Azure and AWS S3
  • Uploading data via client hosted APIs
